8746 Tall Series
Dometic/Sealand Masterflush 8746 Tall Model Toilet Diagrams
Looking for replacement parts for your Dometic/Sealand Masterflush 8746 tall model toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!

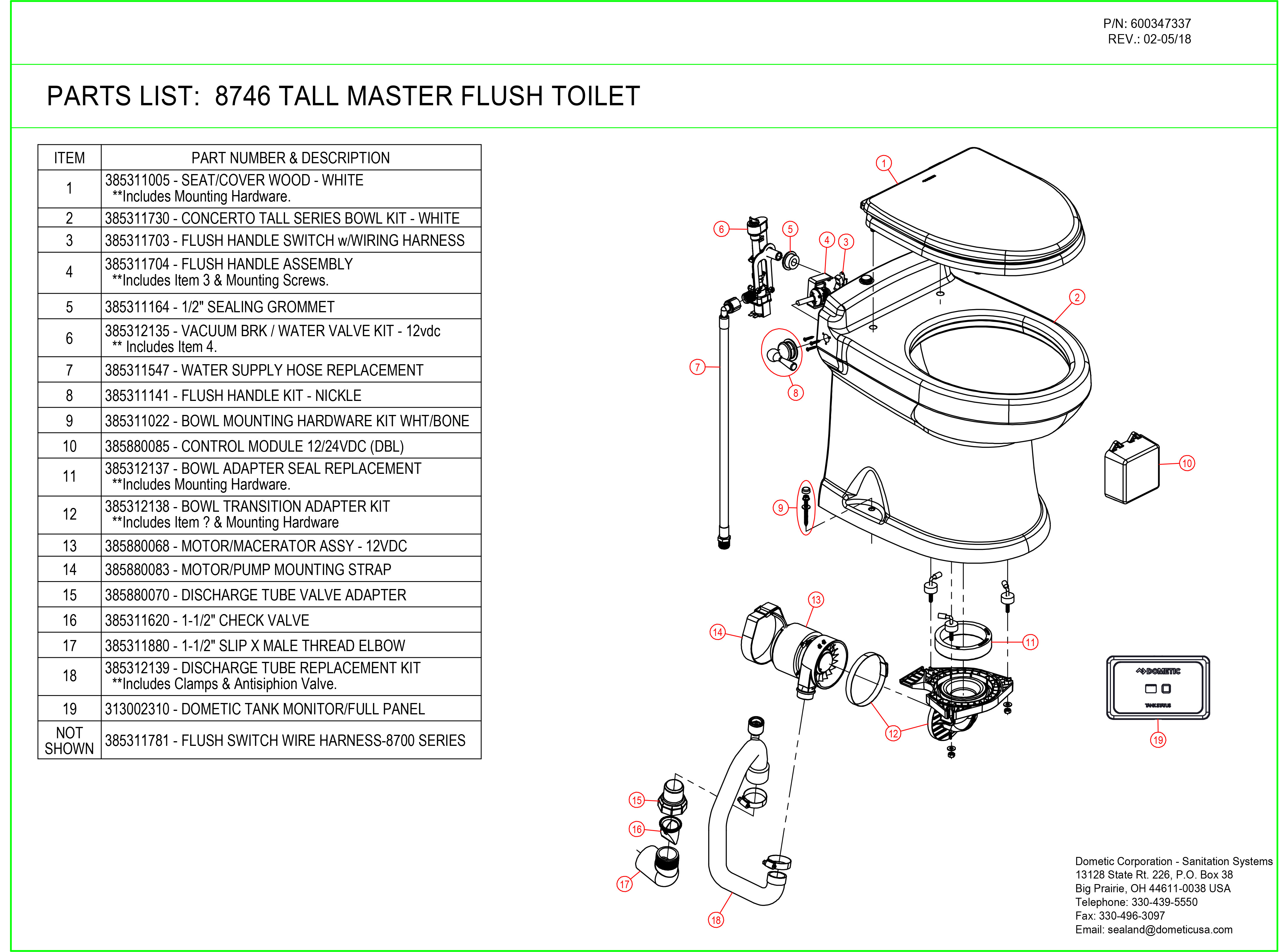

Dometic/Sealand Masterflush 8746 Tall Model Toilet Replacement Parts List

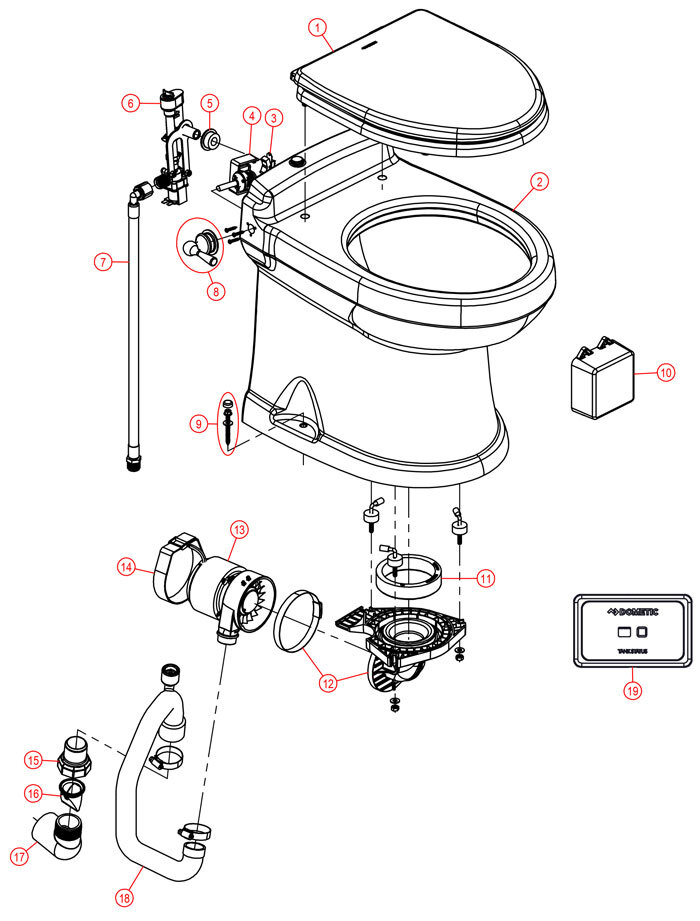

Click to Enlarge
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385311005 | Seat/Cover Wood – White (includes Mounting Hardware) |
| 2 | 385311730 | Concerto Tall Series Bowl Kit - White |
| 3 | 385311703 | Flush Handle Switch with Wiring Harness |
| 4 | 385311704 | Flush Handle Assembly (includes item #3 and mounting screws) |
| 5 | 385311164 | ½” Sealing Grommet |
| 6 | 385312135 | Vacuum Brk/Water Valve Kit – 12V DC (includes item #4) |
| 7 | 385311547 | Water Supply Hose Replacement |
| 8 | 385311141 | Flush Handle Kit – Nickel |
| 9 | 385311022 | Bowl Mounting Hardware Kit White/Bone |
| 10 | 385880085 | Control Module 12/24V DC (DBL) |
| 11 | 385312137 | Bowl Adapter Seal Replacement (includes Mounting Hardware) |
| 12 | 385312138 | Bowl Transition Adapter Kit (includes Mounting Hardware) |
| 13 | 385880068 | Motor/Macerator Assembly – 12V DC |
| 14 | 385880083 | Motor/Pump Mounting Strap |
| 15 | 385880070 | Discharge Tube Valve Adapter |
| 16 | 385311620 | 1-1/2” Check Valve |
| 17 | 385311880 | 1-1/2” Slip X Male Thread Elbow |
| 18 | 385312139 | Discharge Tube Replacement Kit (includes Clamps & Anti-Siphon Valve) |
| 19 | 313002310 | Dometic Tank Monitor/Full Panel |
| Not Shown | 385311781 | Flush Switch Wire Harness – 8700 Series |
