8600 Series Tall Model - Old Discharge
Dometic/Sealand Masterflush 8600 Series Tall Model Toilets with Old Discharge Diagrams
Looking for replacement parts for your Dometic/Sealand Masterflush 8600 series tall model toilets with old discharge type? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!

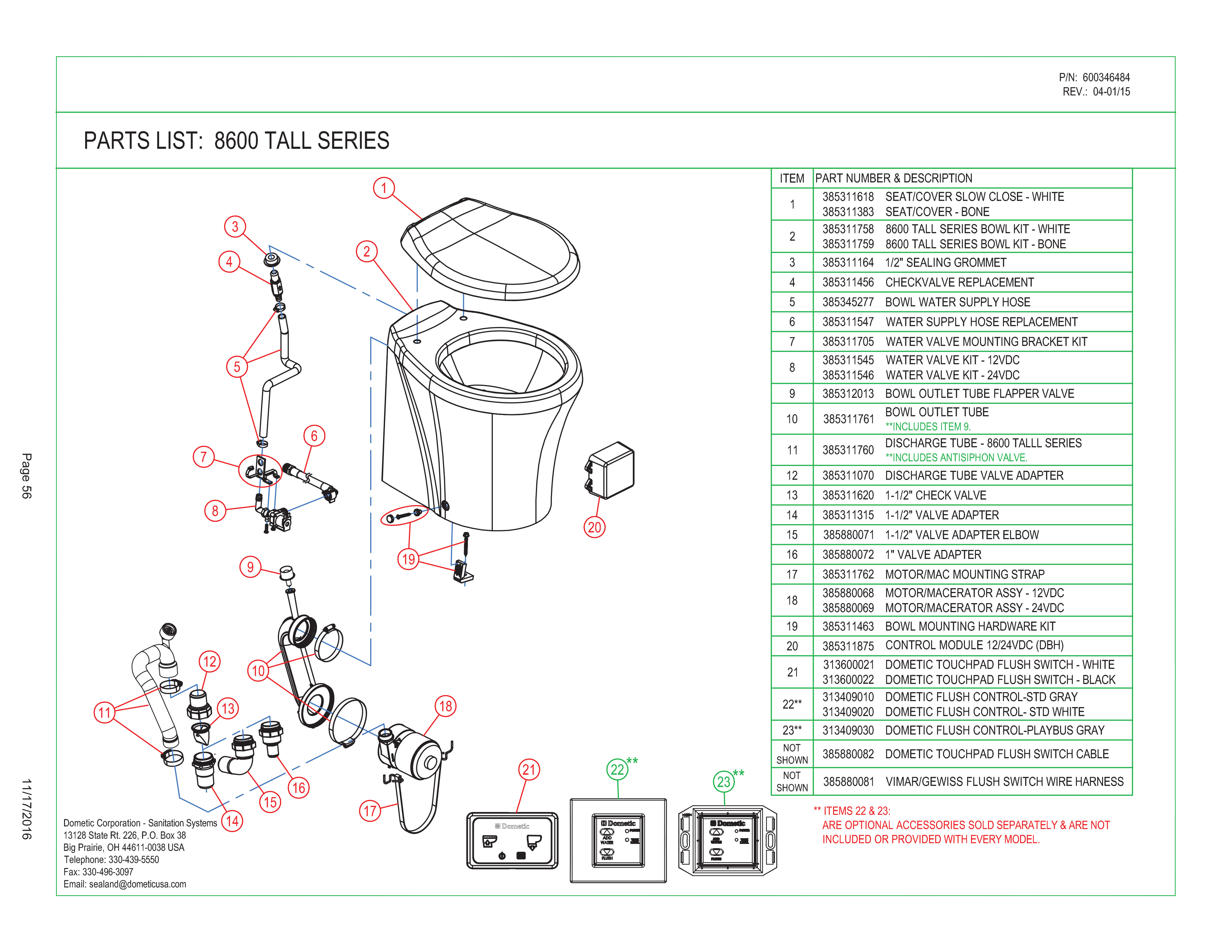

Dometic/Sealand Masterflush 8600 Series Tall Model Toilets with Old Discharge Replacement Parts List

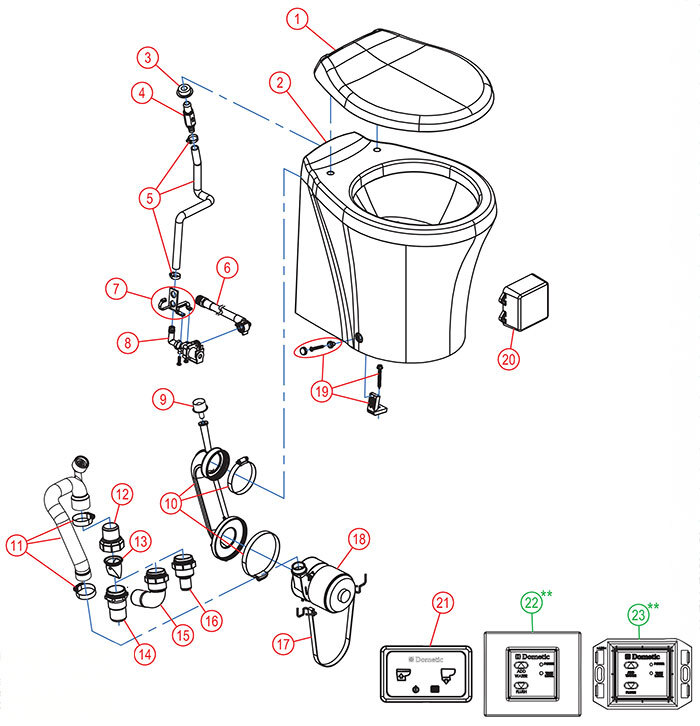

Click to Enlarge
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385311618 | Seat/Cover Slow Close – White |
| 1 | 385311383 | Seat/Cover Slow Close - Bone |
| 2 | 385311758 | 8600 Tall Series Bowl Kit – White |
| 2 | 385311759 | 8600 Tall Series Bowl Kit - Bone |
| 3 | 385311164 | 1/2” Sealing Grommet |
| 4 | 385311456 | Check Valve Replacement |
| 5 | 385345277 | Bowl Water Supply Hose |
| 6 | 385311547 | Water Supply Hose Replacement |
| 7 | 385311705 | Water Valve Mounting Bracket Kit |
| 8 | 385311545 | Water Valve Kit – 12V DC |
| 8 | 385311546 | Water Valve Kit – 24V DC |
| 9 | 385312013 | Bowl Outlet Tube Flapper Valve |
| 10 | 385311761 | Bowl Outlet Tube (includes item 9) |
| 11 | 385311760 | Discharge Tube – 8600 Tall Series (includes antisiphon valve) |
| 12 | 385311070 | Discharge Tube Valve Adapter |
| 13 | 385311620 | 1-1/2” Check Valve |
| 14 | 385311315 | 1-1/2” Valve Adapter |
| 15 | 385880071 | 1-1/2” Valve Adapter Elbow |
| 16 | 385880072 | 1” Valve Adapter |
| 17 | 385311762 | Motor/Macerator Mounting Strap |
| 18 | 385880068 | Motor/Macerator Assembly, Masterflush – 12V DC |
| 18 | 385880069 | Motor/Macerator Assembly, Masterflush – 24V DC |
| 19 | 385311463 | Bowl Mounting Hardware Kit |
| 20 | 385311875 | Control Module 12/24V DC (DBH) |
| 21 | 313600021 | Dometic Touchpad Flush Switch – White |
| 21 | 313600022 | Dometic Touchpad Flush Switch – Black |
| 22 | 313409010 | Dometic Flush Control – Std Gray |
| 22 | 313409020 | Dometic Flush Control – Std White |
| 23 | 313409030 | Dometic Flush Control – Playbus Gray |
| Not shown | 385880082 | Dometic Touchpad Flush Switch Cable |
| Not shown | 385880081 | Vimar/Gewiss Flush Switch Wire Harness |
