Dometic/Sealand Masterflush 8600 Series Toilet with Bidet Parts Diagrams
Looking for replacement parts for your Dometic/Sealand Masterflush 8600 series toilet with bidet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!

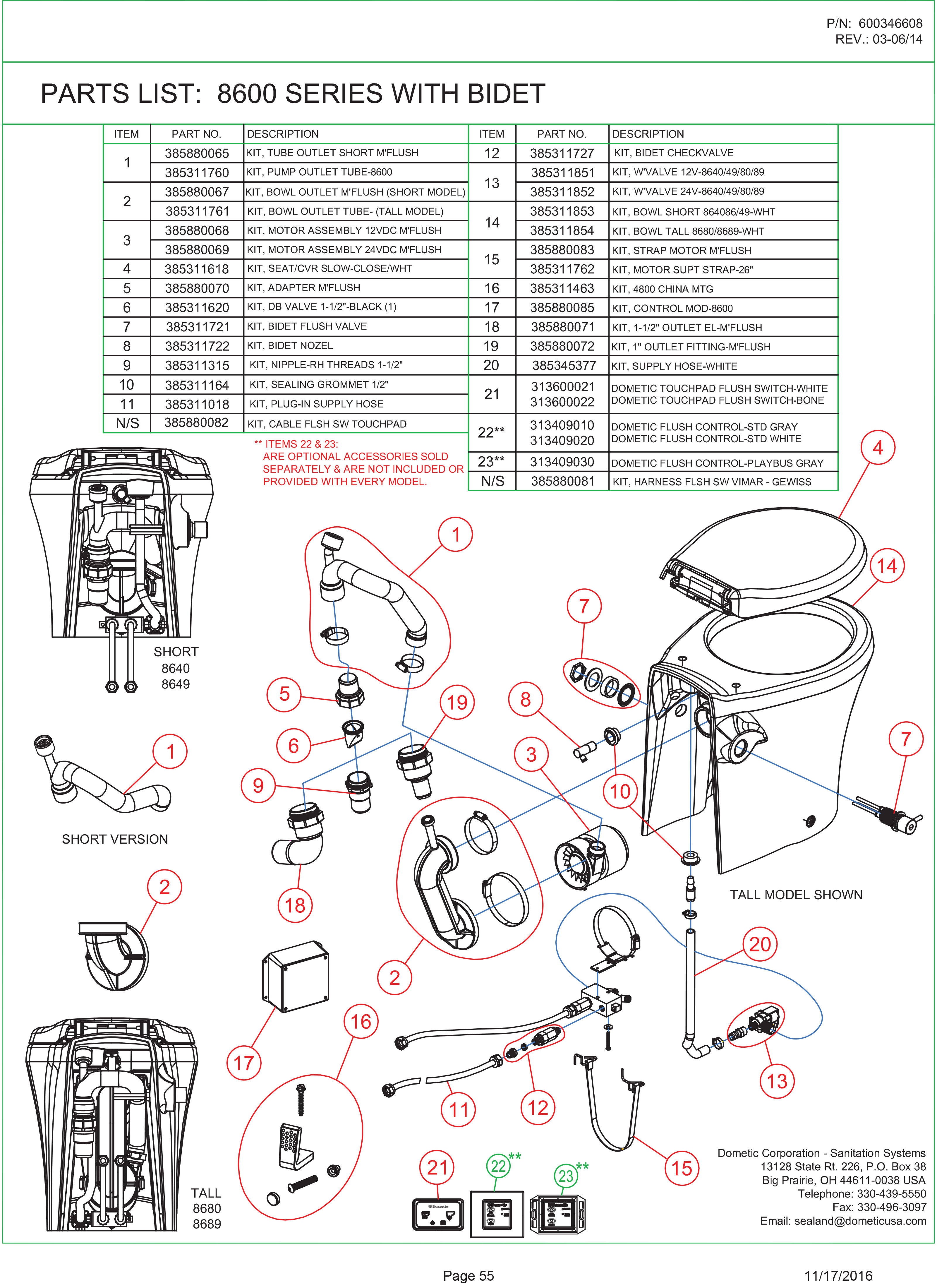

Dometic/Sealand Masterflush 8600 Series Toilet with Bidet Replacement Parts List

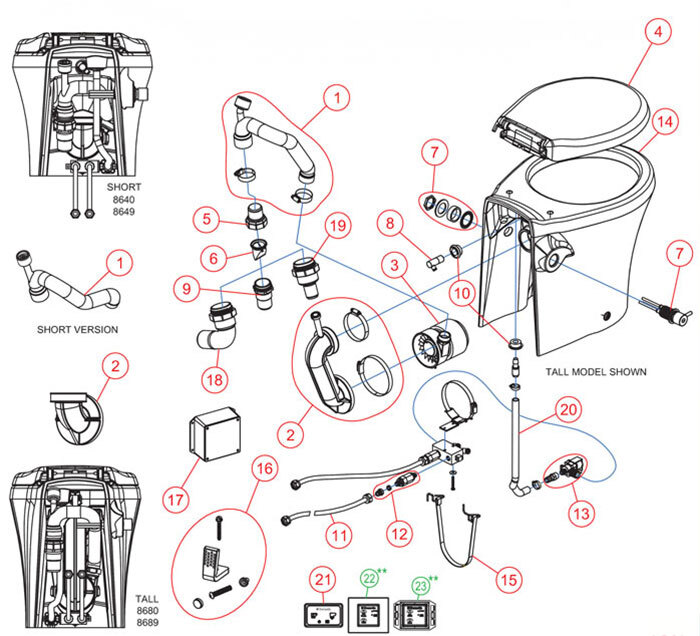

Click to Enlarge
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385880065 | Tube Outlet Short Masterflush |
| 1 | 385311760 | Pump Outlet Tube-8600 |
| 2 | 385880067 | Bowl Outlet Masterflush (Short Model) |
| 2 | 385311761 | Bowl Outlet Tube (Tall Model) |
| 3 | 385880068 | Masterflush Motor Assembly Kit, 12V DC |
| 3 | 385880069 | Masterflush Motor Assembly Kit, 12V DC |
| 4 | 385311618 | Slow-close Toilet Seat/Cover, White |
| 5 | 385880070 | Adapter Kit, Masterflush |
| 6 | 385311620 | DB Valve Kit, 1-1/2” Black |
| 7 | 385311721 | Bidet Flush Valve Kit |
| 8 | 385311722 | Bidet Nozzle Kit |
| 9 | 385311315 | Nipple Kit, Right-Hand Threads 1-1/2” |
| 10 | 385311164 | Sealing Grommet Kit, ½” |
| 11 | 385311018 | Plug-In Supply Hose Kit |
| 12 | 385311727 | Bidet Check Valve Kit |
| 13 | 385311851 | Water Valve Kit, 12V-8640/49/80/89 |
| 13 | 385311852 | Water Valve Kit, 24V-8640/49/80/89 |
| 14 | 385311853 | Bowl Kit, Short 864086/49-WHT |
| 14 | 385311854 | Bowl Kit, Short 8640/8689-WHT |
| 15 | 385880083 | Strap Motor Kit, Masterflush |
| 15 | 385311762 | Motor Supt Strap Kit, 26” |
| 16 | 385311463 | 4800 China Bowl Mounting Hardware Kit |
| 17 | 385880085 | Control Mod Kit, 8600 |
| 18 | 385880071 | 1-1/2” Outlet Fitting Kit, Masterflush |
| 19 | 385880072 | 1” Outlet Fitting Kit, Masterflush |
| 20 | 385345377 | Supply Hose Kit, White |
| 21 | 313600021 | Dometic Touchpad Flush Switch, White |
| 21 | 313600022 | Dometic Touchpad Flush Switch, Bone |
| 22 | 313409010 | Dometic Flush Control, Standard Gray (Optional) |
| 22 | 313409020 | Dometic Flush Control, Standard White (Optional) |
| 23 | 313409030 | Dometic Flush Control, Playbus Gray (Optional) |
| Not Shown | 385880082 | Cable Flush Switch Touchpad |
| Not Shown | 385880081 | Harness Flush Switch Kit, Vimar-Gewiss |
