8100 Low Series Parts

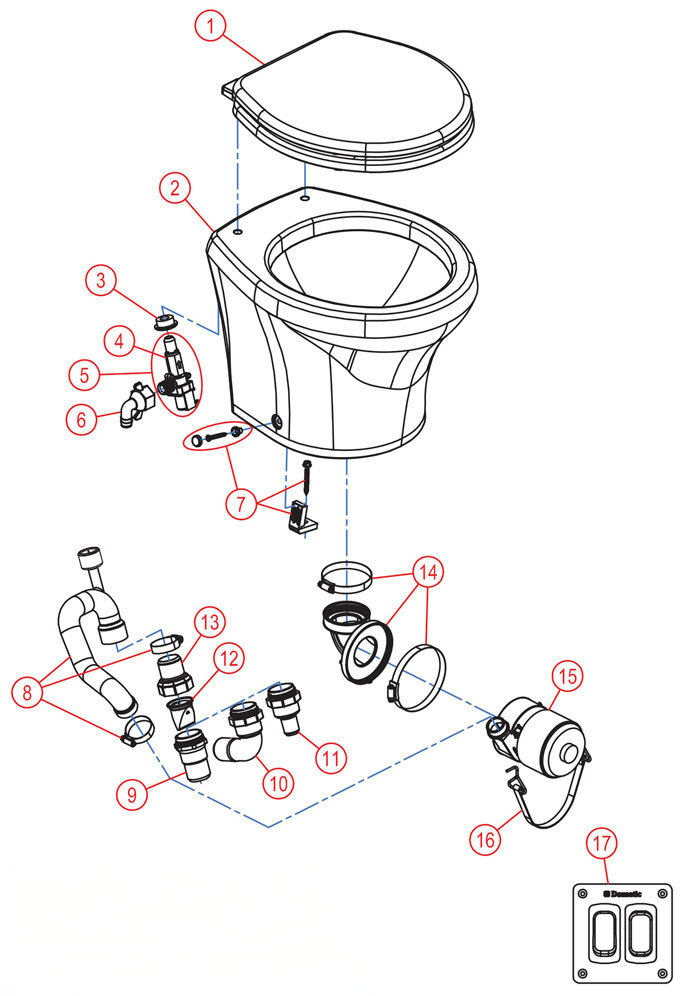

Dometic/Sealand Masterflush 8100 Low-Profile Series Masterflush Toilet Parts Diagram
Looking for replacement parts for your Dometic/Sealand Masterflush 8100 low-profile series Masterflush toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!

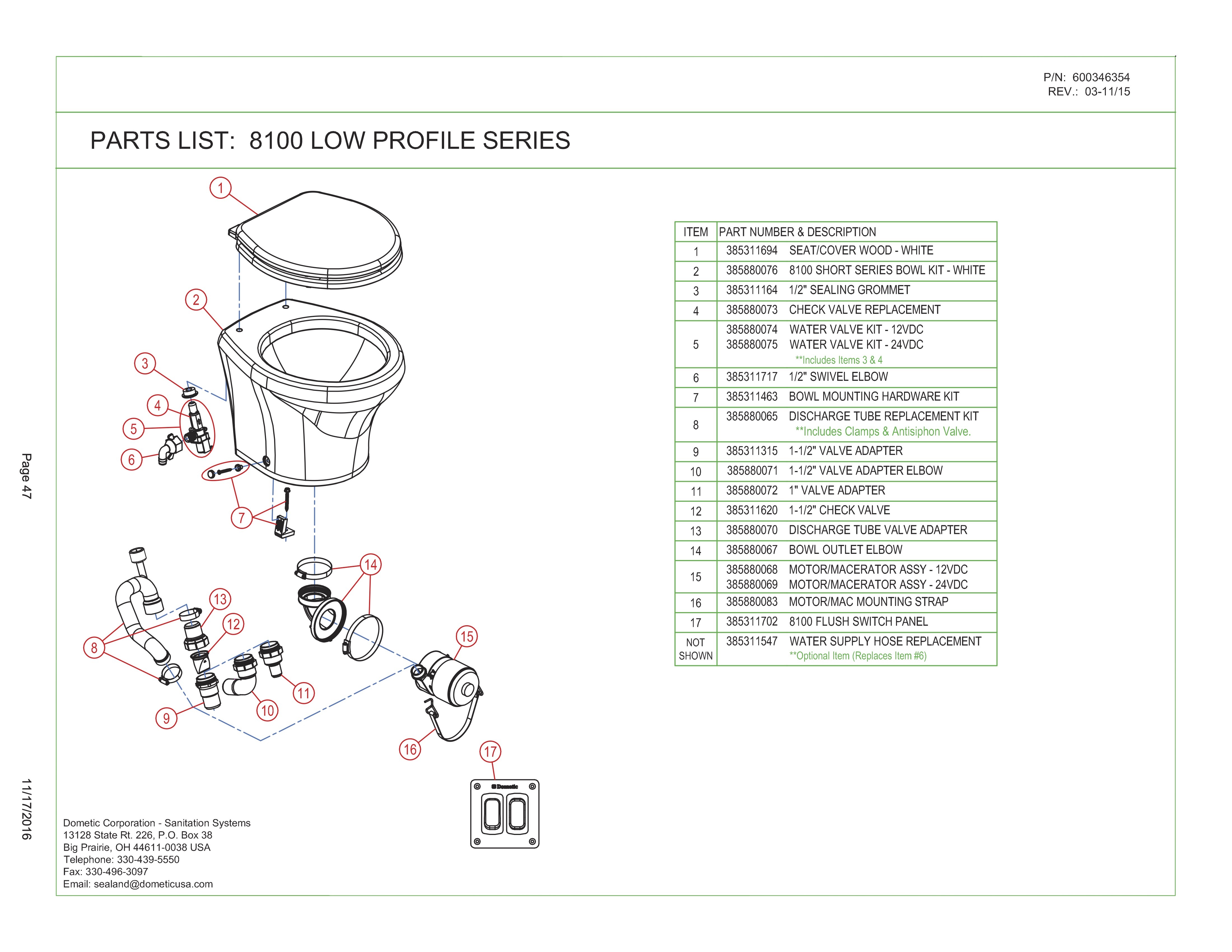

Dometic/Sealand Masterflush 8100 Low-Profile Series Masterflush Toilet Replacement Parts List
Click to Enlarge
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385311694 | Seat/Cover Wood – White |
| 2 | 385880076 | 8100 Short Series Bowl Kit – White |
| 3 | 385311164 | 1/2” Sealing Grommet |
| 4 | 385880073 | Check Valve Replacement |
| 5 | 385880074 | Water Valve Kit – 12vdc (includes Items 3 & 4) |
| 5 | 385880075 | Water Valve Kit – 24vdc (includes Items 3 & 4) |
| 6 | 385311717 | 1/2” Swivel Elbow |
| 7 | 385311463 | Bowl Mounting Hardware Kit |
| 8 | 385880065 | Discharge Tube Replacement Kit (includes clamps & antisiphon valve) |
| 9 | 385311315 | 1-1/2” Valve Adapter |
| 10 | 385880071 | 1-1/2” Valve Adapter Elbow |
| 11 | 385880072 | 1” Valve Adapter |
| 12 | 385311620 | 1-1/2” Check Valve |
| 13 | 385880070 | Discharge Tube Valve Adapter |
| 14 | 385880067 | Bowl Outlet Elbow |
| 15 | 385880068 | Motor/Macerator Assembly – 12vdc |
| 15 | 385880069 | Motor/Macerator Assembly – 24vdc |
| 16 | 385880083 | Motor/Mac Mounting Strap |
| 17 | 385311702 | 8100 Flush Switch Panel |
| Not Shown | 385311547 | Water Supply Hose Replacement (optional item; replaces Item #6) |
