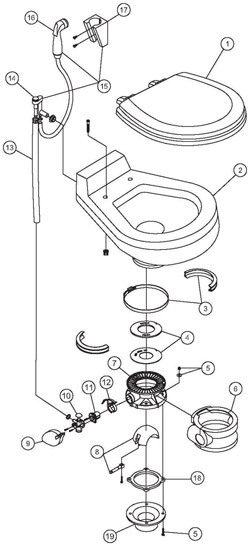

Dometic/Sealand 2011 Model Gravity Flush Toilet Parts Diagram
Looking for replacement parts for your Dometic/Sealand 2011 model gravity flush toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets and RV toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!
Dometic/Sealand 2011 Model Gravity Flush Toilet Replacement Parts List
| Item Number | Part Number | Item Description |
| 1 | 385344436 | Seat Assembly – White |
| 1 | 385344437 | Seat Assembly – Bone |
| 1 | 385344438 | Seat Assembly – Ebony |
| 2 | 385310615 | China Bowl Kit – White |
| 2 | 385310616 | China Bowl Kit – Bone |
| 2 | 385310585 | China Bowl Kit – Ebony |
| 3 | 385310048 | Band & Half Clamp Kit Bone |
| 3 | 385310025 | Band & Half Clamp Kit White |
| 4 | 385311462 | Seal Replacement Kit |
| 5 | 385310064 | Mounting Hardware |
| 6 | 385310108 | Pedestal Cover Kit – White |
| 6 | 385310109 | Pedestal Cover Kit – Bone |
| 6 | 385310600 | Pedestal Cover – Ebony |
| 7 | 385310123 | Base Kit – White (includes Items 3-12) |
| 7 | 385310124 | Base Kit – Bone (includes Items 3-12) |
| 7 | 385310588 | Base Kit – Ebony (includes Items 3-12) |
| 8 | 385318162 | Kit, Ball, Shaft, Cartridge – White (includes item 11) |
| 8 | 385310177 | Kit, Ball, Shaft, Cartridge – Ebony (includes item 11) |
| 9 | 385310117 | Pedal Cover – White |
| 9 | 385310118 | Pedal Cover – Bone |
| 9 | 385310593 | Pedal Cover – Ebony |
| 10 | 385314349 | Water Valve Kit |
| 11 | 385236096 | Spring Cartridge Kit |
| 12 | 385310579 | Pedal, Cartridge, Kit (includes Item 11) |
| 13 | 385340177 | Hose, Supply – Bone & Ebony |
| 13 | 385345377 | Hose, Supply – White |
| 14 | 385316906 | Vacuum Breaker, Kit – Used without spray |
| 14 | 385230335 | Vacuum Breaker, Kit – Used with spray |
| 15 | 385319056 | Vacuum Breaker, Spray & Bracket, Kit |
| 16 | 385310809 | Hand Spray – Chrome |
| 16 | 385310873 | Hand Spray – Ebony |
| 17 | 385311131 | Bracket, Hand Spray – Chrome |
| 17 | 385311125 | Bracket, Hand Spray – Ebony |
| 18 | 385310063 | Floor Flange, Kit (includes Item 5) |
| 19 | 385345889 | Floor Flange, 3” MPT* |
| 19 | 385345892 | Floor Flange, 3” Socket* |
| 19 | 385343765 | Floor Flange, 3” Spigot * |
| 19 | 385310961 | Floor Flange Adapter, 45° Swivel (must be used with seal included)* |
*Item 19 sold separately.
