510H Traveler Parts
Dometic/Sealand 510H Model Gravity Flush Toilet Parts Diagram
Looking for replacement parts for your Dometic/Sealand 510H model gravity flush toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets and RV toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!
Dometic/Sealand 510H Model Gravity Flush Toilet Replacement Parts List
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385343829 | Seat/Cover – White |
| 1 | 385343831 | Seat/Cover – Bone |
| 2 | 385310739 | China Bowl Kit – White |
| 2 | 385310740 | China Bowl Kit – Bone |
| 3 | 385310025 | Bowl/Base Clamp Kit – White |
| 3 | 385310048 | Bowl/Base Clamp Kit – Bone |
| 4 | 385311462 | Flush Ball Seal Replacement Kit |

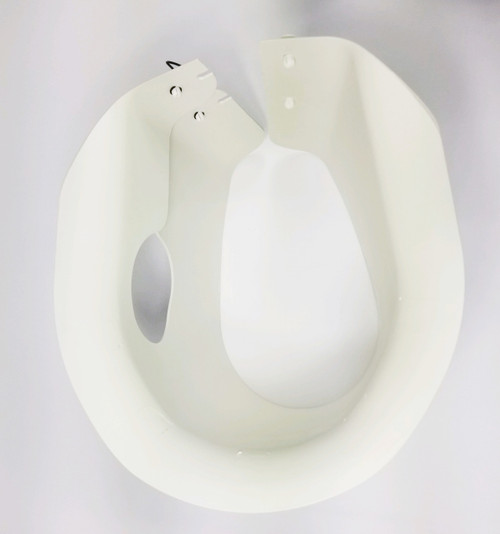

| 5 | 385311540 | Base Shroud 500H – White |
| 5 | 385311541 | Base Shroud 500H – Bone |
| 6 | 385310681 | Flush Ball, Shaft, Cartridge Kit (includes Item 11) |
| 7 | 385311267 | Floor Flange Seal |
| 8 | 385311117 | Mounting Hardware |
| 9 | 385311119 | Pedal & Cover – White |
| 9 | 385311120 | Pedal & Cover – Bone |
| 10 | 385314349 | Water Valve Kit |
| 11 | 385310683 | Spring Cartridge Kit |
| 12 | 385311179 | Pedal Cover – White |
| 12 | 385311180 | Pedal Cover – Bone |
| 13 | 385311121 | Pedal/Cartridge Kit – White (includes Items 11 & 12) |
| 13 | 385311122 | Pedal/Cartridge Kit – Bone (includes Items 11 & 12) |
| 14 | 385340177 | Bowl Water Supply Hose – White |
| 14 | 385345377 | Bowl Water Supply Hose – Bone |
| 15 | 385311164 | 1/2” Sealing Grommet |
| 16 | 385230335 | Vacuum Breaker Kit w/Hand Spray (includes Item 15) |
| 16 | 385316906 | Vacuum Breaker Kit (includes Item 15) |
| 17 | 385319056 | Hand Spray Kit w/Vac Breaker – Chrome (includes Items 15, 16, & 18)* |
| 18 | 385310809 | Hand Sprayer – Chrome (includes mounting bracket)* |
| 19 | 385311128 | 500H Base Kit – White (includes Items 3-13) |
| 19 | 385311129 | 500H Base Kit – Bone (includes Items 3-13) |
| 20 | 385345889 | 3” MPT Floor Flange |
| 20 | 385345892 | 3” Socket Floor Flange |
| 20 | 385343765 | 3” Spigot Floor Flange |
| 20 | 385310961 | 45° Swivel Floor Flange (must be used with seal included in kit) |
*Items 17 & 18 are optional accessories; not provided with every model.
