M28-711 Parts List

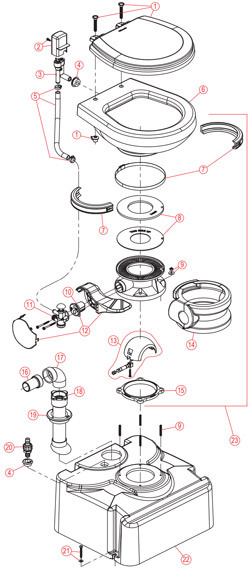

Dometic/Sealand 711-M28 Model Gravity Flush Toilet Parts Diagram
Looking for replacement parts for your Dometic/Sealand 711-M28 model gravity flush toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets and RV toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!
Dometic/Sealand 711-M28 Model Gravity Flush Toilet Replacement Parts List
| ITEM NUMBER | PART NUMBER | ITEM DESCRIPTION |
| 1 | 385344436 | Seat/Cover – White (includes mounting hardware) |
| 1 | 385344437 | Seat/Cover – Bone (includes mounting hardware) |
| 2 | 385310696 | Vacuum Breaker Cover – White (includes mounting hardware) |
| 2 | 385310782 | Vacuum Breaker Cover – Bone (includes mounting hardware) |
| 3 | 385316906 | Vacuum Breaker Kit (includes item 4) |
| 4 | 385311164 | 1/2” Sealing Grommet |
| 5 | 385345377 | Bowl Water Supply Hose (includes hose clamps) |
| 6 | 385310676 | Bowl Kit – White |
| 6 | 385310781 | Bowl Kit – Bone |
| 7 | 385310025 | Bowl/Base Clamp Kit – White |
| 7 | 385310048 | Bowl/Base Clamp Kit – Bone |
| 8 | 385311462 | Flush Ball Seal Replacement Kit |
| 9 | 385310534 | Mounting Hardware Kit – M28 |
| 10 | 385310683 | Spring Cartridge Kit |
| 11 | 385314349 | Water Valve Kit (includes mounting screws) |
| 12 | 385310682 | Flush Pedal Kit – White (includes Item 10) |
| 12 | 385310762 | Flush Pedal Kit – Bone (includes Item 10) |
| 13 | 385310681 | Flush Ball, Shaft & Cartridge Kit (includes Item 10) |
| 14 | 385310108 | Pedestal Cover Kit – White |
| 14 | 385310109 | Pedestal Cover Kit – Bone |
| 15 | 385310063 | Floor/Base Seal |
| 16 | 385341513 | 1-1/2” Hose Adapter Fitting |
| 17 | 385311886 | 1-1/2” Quarter-Bend Street Elbow |
| 18 | 385310532 | M28 Tank Discharge Diptube Kit (includes Item 19) |
| 19 | 385311110 | 2” Sealing Grommet |
| 20 | 385314362 | M28 Tank Vent Fitting Assembly (includes Item 4) |
| 21 | 385310533 | M28 Tank Mounting Hardware |
| 22 | 385311287 | M28 Tank Assembly – White (includes Items 4 & 15-21) |
| 22 | 385310085 | M28 Tank Assembly – Bone (includes Items 4 & 15-21) |
| 23 | 385311286 | 711 Base Kit – White (includes Items 7-15) |
| 23 | 385310891 | 711 Base Kit – Bone (includes Items 7-15) |
