8940 Tall Series

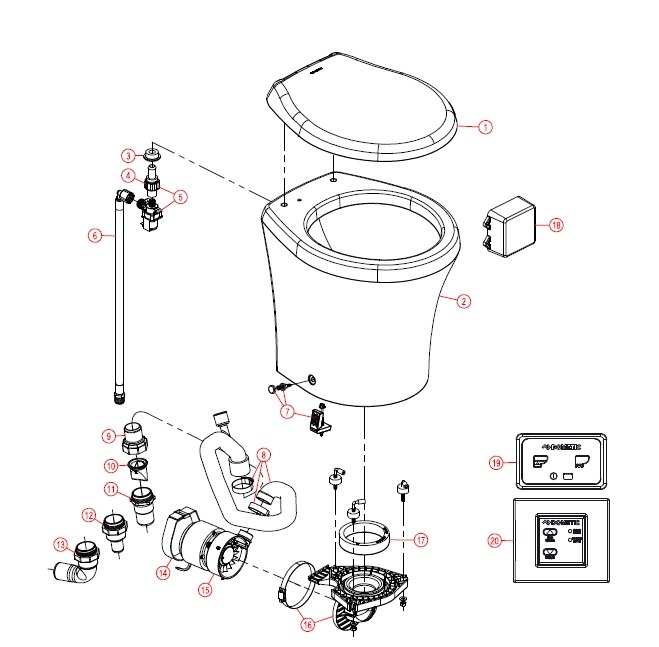

Dometic/Sealand Masterflush 8940 Low Profile Series Toilet Diagram
Looking for replacement parts for your Dometic/Sealand Masterflush 8940 Low Profile Series toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!
Dometic/Sealand Masterflush 8940 Low Profile Series Toilet Replacement Parts List
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385311618 | Seat/Cover Slow Close – White (includes mounting hardware) |
| 1 | 385311619 | Seat/Cover Slow Close – Bone (includes mounting hardware) |
| 1 | 385311694 | Seat/Cover Wood – White (includes mounting hardware) |
| 1 | 385311695 | Seat/Cover Wood – Bone (includes mounting hardware) |
| 2 | 385311380 | 4800/8900 Tall Series Bowl Kit – White |
| 2 | 385311381 | 4800/8900 Tall Series Bowl Kit – Bone |
| 3 | 385311164 | ½” Sealing Grommet |
| 4 | 385880073 | Check Valve Replacement |
| 5 | 385880074 | Water Valve Kit – 12VDC (includes items 3 & 4) |
| 5 | 385880075 | Water Valve Kit – 24VDC (includes items 3 & 4) |
| 6 | 385312198 | Water Supply Hose Replacement |
| 7 | 385311463 | Bowl Mounting Hardware Kit |
| 8 | 385312149 | Discharge Tube Replacement Kit (includes clamps & Anti-Siphon) |
| 9 | 385880070 | Discharge Tube Valve Adapter |
| 10 | 385310076 | 1-1/2” Check Valve |
| 11 | 385311315 | 1-1/2” Valve Adapter |
| 12 | 385880072 | 1” Valve Adapter |
| 13 | 385880071 | 1-1/2” Valve Adapter Elbow |
| 14 | 385880083 | Motor/Mac Mounting Strap |
| 15 | 385880068 | Motor/Macerator Assembly – 12VDC |
| 15 | 385880069 | Motor/Macerator Assembly – 24VDC |
| 16 | 385312138 | Bowl Transition Adapter Kit (includes item 17 & mounting hardware) |
| 17 | 385312137 | Bowl Adapter Seal Replacement (includes mounting hardware) |
| 18 | 385880085 | Control Module 12/24VDC (DBL) |
| 19 | 313600021 | Dometic Touchpad Flush Switch - White |
| 19 | 313600022 | Dometic Touchpad Flush Switch - Black |
| 20 | 313409010 | Dometic Flush Control – Gray |
| 20 | 313409020 | Dometic Flush Control – White |
| N/S | 313409030 | Dometic Flush Control – Playbus Gray |
