8750 Model with Flush Switch 2010-2016

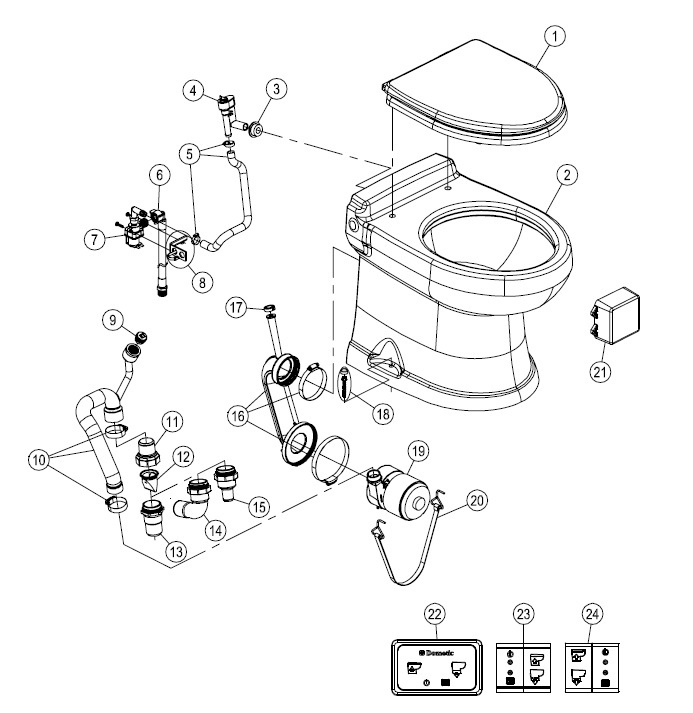

Dometic/Sealand Masterflush 8750 Tall Series Model with Old Discharge and Flush Switch Diagram
Looking for replacement parts for your Dometic/Sealand Masterflush 8750 tall series toilets with flush switch and old discharge type? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!
Dometic/Sealand Masterflush 8750 Tall Series Model with Old Discharge and Flush Switch Replacement Parts List
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385311005 | Seat/Cover Wood – White |
| 1 | 385311006 | Seat/Cover Wood – Bone |
| 1 | 385311597 | Seat/Cover Wood – Ebony |
| 2 | 385311007 | 8700 Series Bowl Kit – White |
| 2 | 385311008 | 8700 Series Bowl Kit – Bone |
| 2 | 385311598 | 8700 Series Bowl Kit - Ebony |
| 3 | 385311164 | ½” Sealing Grommet |
| 4 | 385316906 | Vacuum Breaker Kit (includes item #3) |
| 5 | 385345377 | Bowl Supply Water Hose |
| 6 | 385312198 | Water Supply Hose Replacement |
| 7 | 385311545 | Water Valve Kit – 12V DC |
| 7 | 385311546 | Water Valve Kit – 24V DC |
| 8 | 385311705 | Water Valve Mounting Bracket Kit |
| 9 | 385880080 | Antisiphon Valve Assembly |
| 10 | 385311706 | Discharge Tube – 8700 Series (includes Anti-Siphon Valve) |
| 11 | 385880070 | Discharge Tube Valve Adapter |
| 12 | 385310076 | 1-1/2” Check Valve |
| 13 | 385311315 | 1-1/2” Valve Adapter |
| 14 | 385880071 | 1-1/2” Valve Adapter Elbow |
| 15 | 385880072 | 1” Valve Adapter |
| 16 | 385311708 | Bowl Outlet Tube (includes item #17) |
| 17 | 385312013 | Bowl Outlet Tube Flapper Valve |
| 18 | 385311022 | Bowl Mounting Hardware |
| 19 | 385880068 | Motor/Macerator Assembly – 12V DC |
| 19 | 385880069 | Motor/Macerator Assembly – 24V DC |
| 20 | 385311779 | Motor/Macerator Mounting Strap |
| 21 | 385880085 | Control Module 12/24VDC (DBL) |
| 22 | 313600021 | Dometic Touchpad Flush Switch – White |
| 22 | 313600022 | Dometic Touchpad Flush Switch – Black |
| 23 | 313600001 | Flush Switch Vimar - White |
| 23 | 313600002 | Flush Switch Vimar - Gray |
| 24 | 313600111 | Flush Switch Gewiss - Gray |
| N/S | 385880081 | Flush Switch Wire Harness Vimar / Gewiss |
| N/S | 385880082 | Dometic Touchpad Flush Switch Cable |
