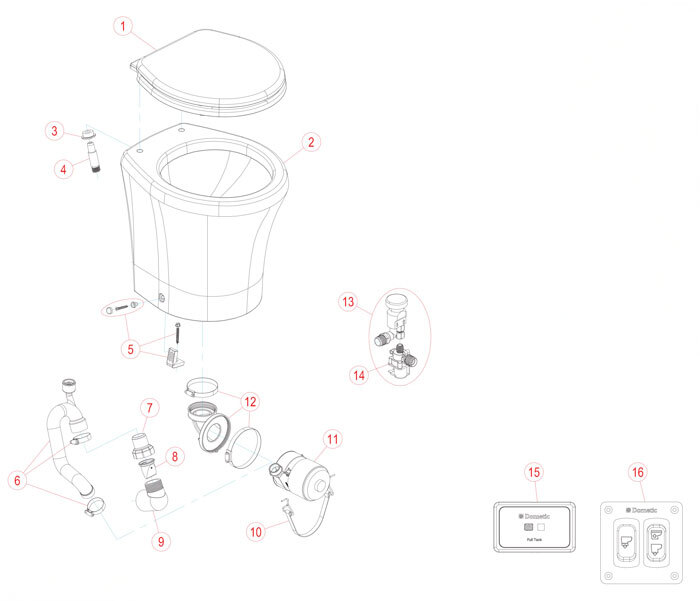

Dometic/Sealand Masterflush 8100 Tall Series Masterflush Toilet Parts Diagram
Looking for replacement parts for your Dometic/Sealand Masterflush 8100 low-profile series Masterflush toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!

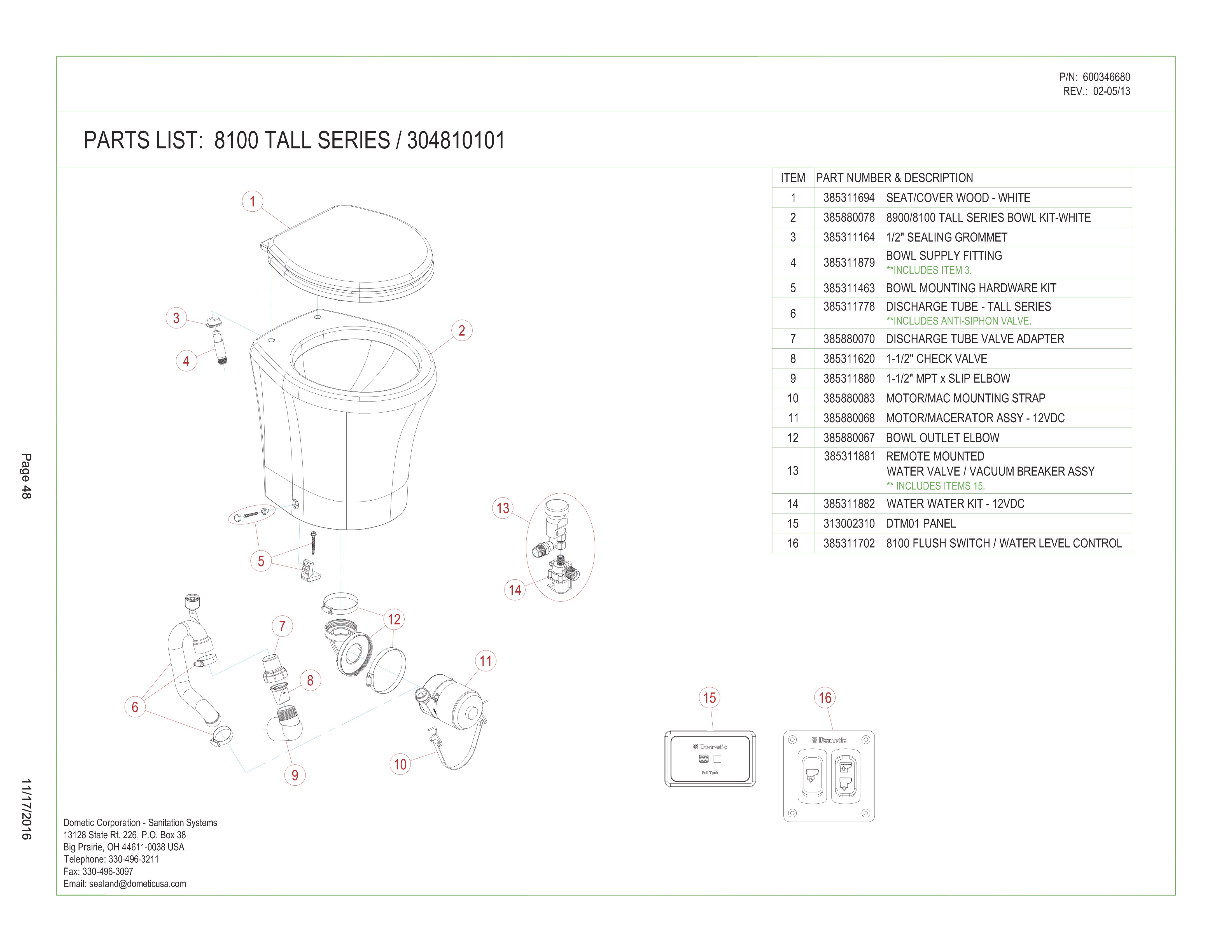

Dometic/Sealand Masterflush 8100 Tall Series Masterflush Toilet Replacement Parts List
Click to Enlarge
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385311694 | Seat/Cover Wood – White |
| 2 | 385880078 | 8900/8100 Short Series Bowl Kit – White |
| 3 | 385311164 | 1/2” Sealing Grommet |
| 4 | 385311879 | Bowl Supply Fitting (includes Item 3) |
| 5 | 385311463 | Bowl Mounting Hardware Kit |
| 6 | 385311778 | Discharge Tube – Tall Series (includes anti-siphon valve) |
| 7 | 385880070 | Discharge Tube Valve Adapter |
| 8 | 385311620 | 1-1/2” Check Valve |
| 9 | 385311880 | 1-1/2” MPT x Slip Elbow |
| 10 | 385880083 | Motor/Mac Mounting Strap |
| 11 | 385880068 | Motor/Macerator Assembly – 12vdc |
| 12 | 385880067 | Bowl Outlet Elbow |
| 13 | 385311881 | Remote Mounted Water Valve/Vacuum Breaker Assembly (includes Item 15) |
| 14 | 385311882 | Water Water Kit – 12vdc |
| 15 | 313002310 | DTM01 Panel |
| 16 | 385311702 | 8100 Flush Switch/Water Level Control |
