7160 Series Parts
Dometic/Sealand Masterflush 7160 Raw Water Orbit Toilet Parts Diagram
Looking for replacement parts for your Dometic/Sealand Masterflush 7160 Raw Water Orbit series macerator toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store,contact our team and we’ll track it down for you!

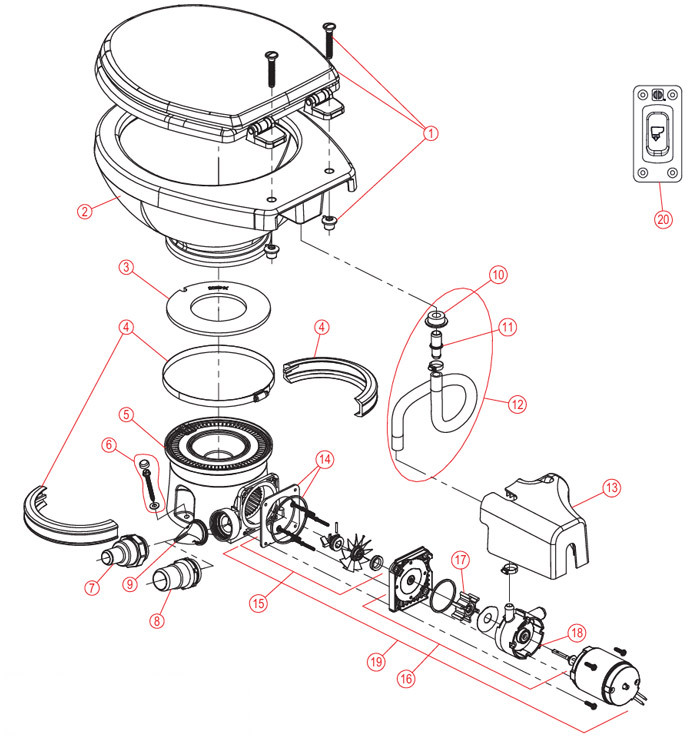

Dometic/Sealand Masterflush 7160 Raw Water Orbit Toilet Replacement Parts List
Click to Enlarge
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385343829 | SEAT/COVER - WHITE |
| 1 | 385343831 | SEAT/COVER - BONE |
| 2 | 385311079 | BOWL KIT - WHITE |
| 2 | 385311080 | BOWL KIT - BONE |
| 3 | 385311979 | BOWL SEAL |
| 4 | 385310025 | BOWL/BASE CLAMP WHITE |
| 4 | 385310048 | BOWL/BASE CLAMP BONE |
| 5 | 385311980 | BASE KIT - WHITE |
| 5 | 385311981 | BASE KIT - BONE |
| 6 | 385310679 | MOUNTING HARDWARE |
| 7 | 385880072 | 1" VALVE ADAPTER |
| 8 | 385311315 | 1 1/2" VALVE ADAPTER |
| 9 | 385310076 | 1 1/2" CHECK VALVE (2 PACK) |
| 10 | 385311164 | 1/2" SEALING GROMMET |
| 11 | 385311982 | BOWL SUPPLY HOSE ADAPTER *INCLUDES #10 |
| 12 | 385311983 | BOWL SUPPLY HOSE KIT - FRESHWATER *INCLUDES #10-11 & CLAMPS |
| 13 | 385311985 | 7000 SERIES PUMP/MOTOR COVER - WHITE |
| 13 | 385311986 | 7000 SERIES PUMP/MOTOR COVER - BONE |
| 14 | 385312033 | FLANGE GASKET REPLACEMENT KIT |
| 15 | 385311988 | MACERATOR BLADE REBUILD KIT *INCLUDES MOUNTING HARDWARE |
| 16 | 385311989 | WATER PUMP IMPELLER/SEAL REBUILD KIT *INCLUDES MOUNTING HARDWARE & SEALS |
| 17 | 385311990 | WATER PUMP IMPELLER REPLACEMENT |
| 18 | 385311991 | WATER PUMP HOUSING *INCLUDES PUMP SEALS |
| 19 | 385311993 | PUMP/MOTOR 12V REPLACEMENT - COMPLETE *INCLUDES ITEMS 14-17 & CLAMPS |
| 19 | 385311994 | PUMP/MOTOR 24V REPLACEMENT - COMPLETE *INCLUDES ITEMS 14-17 & CLAMPS |
| 20 | 385311997 | DFS-1F FLUSH SWITCH PANEL. *INCLUDES MOUNTING SCREWS. |
