7120 Series Parts

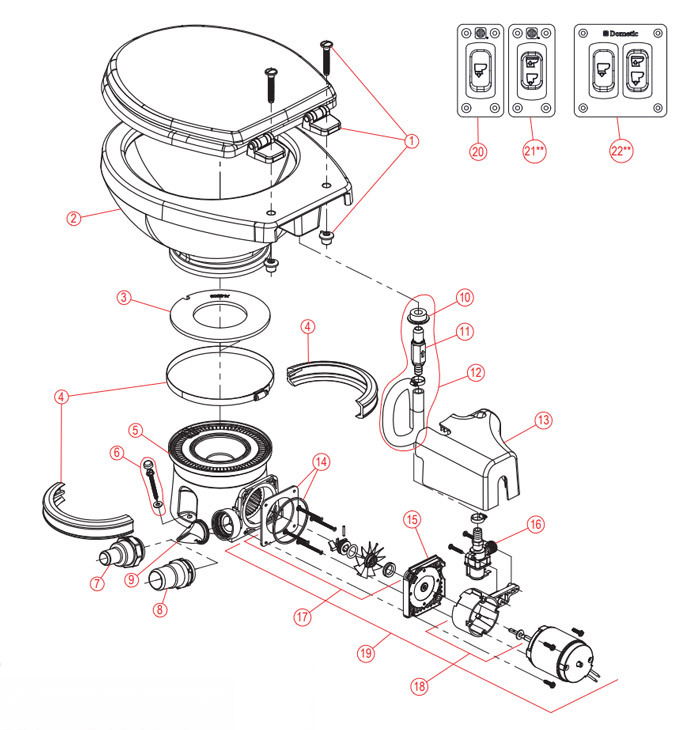

Dometic/Sealand Masterflush 7120 Freshwater Orbit Toilet Parts Diagram
Looking for replacement parts for your Dometic/Sealand Masterflush 7120 Freshwater Orbit series macerator toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!
Dometic/Sealand Masterflush 7120 Freshwater Orbit Toilet Replacement Parts List
Click to Enlarge
| Item Number | Part Number | Item Description |
|---|---|---|
| 1 | 385343829 | Seat/Cover - White |
| 1 | 385343831 | Seat/Cover - Bone |
| 2 | 385311079 | Bowl Kit - White |
| 2 | 385311080 | Bowl Kit - Bone |
| 3 | 385311979 | Bowl Seal |
| 4 | 385310025 | Bowl/Base Clamp - White |
| 4 | 385310048 | Bowl/Base Clamp - Bone |
| 5 | 385311980 | Base Kit - White |
| 5 | 385311981 | Base Kit - Bone |
| 6 | 385310679 | Mounting Hardware |
| 7 | 385880072 | 1" Valve Adapter |
| 8 | 385311315 | 1 1/2" Valve Adapter |
| 9 | 385310076 | 1 1/2" Check Valve (2 Pack) |
| 10 | 385311164 | 1/2" Sealing Grommet |
| 11 | 385311456 | Barbed Check Valve Replacement, Includes #10 |
| 12 | 385311984 | Bowl Supply Hose Kit - Freshwater Includes 10-11 & Clamps |
| 13 | 385311985 | 7000 Series Pump/Motor Cover - White |
| 13 | 385311986 | 7000 Series Pump/Motor Cover - Bone |
| 14 | 385312033 | Flange Gasket Replacement Kit |
| 15 | 385311987 | Motor Mounting Plate Includes Mounting Screws & Clamps |
| 16 | 385311851 | Water Valve Kit 12 VDC |
| 16 | 385311852 | WATER VALVE KIT - 24VDC *INCLUDES MOUNTING SCREWS & CLAMPS |
| 17 | 385311988 | MACERATOR BLADE REBUILD KIT *INCLUDES MOUNTING HARDWARE |
| 18 | 385311992 | WATER VALVE MOUNTING SPACER KIT *INCLUDES ALL PUMP SEALS |
| 19 | 385311995 | PUMP/MOTOR 12V REPLACEMENT COMPLETE.*INCLUDES 14-17 & CLAMPS |
| 19 | 385311996 | PUMP/MOTOR 24V REPLACEMENT COMPLETE.*INCLUDES 14-17 & CLAMPS |
| 20 | 385311997 | DFS-1F FLUSH SWITCH PANEL. *INCLUDES MOUNTING SCREWS. |
| 21 | 385311998 | DFS-2F FLUSH SWITCH PANEL. *OPTIONAL |
| 22 | 385311702 | DFST FLUSH SWITCH PANEL. *OPTIONAL |
