210 Traveler Lite Parts

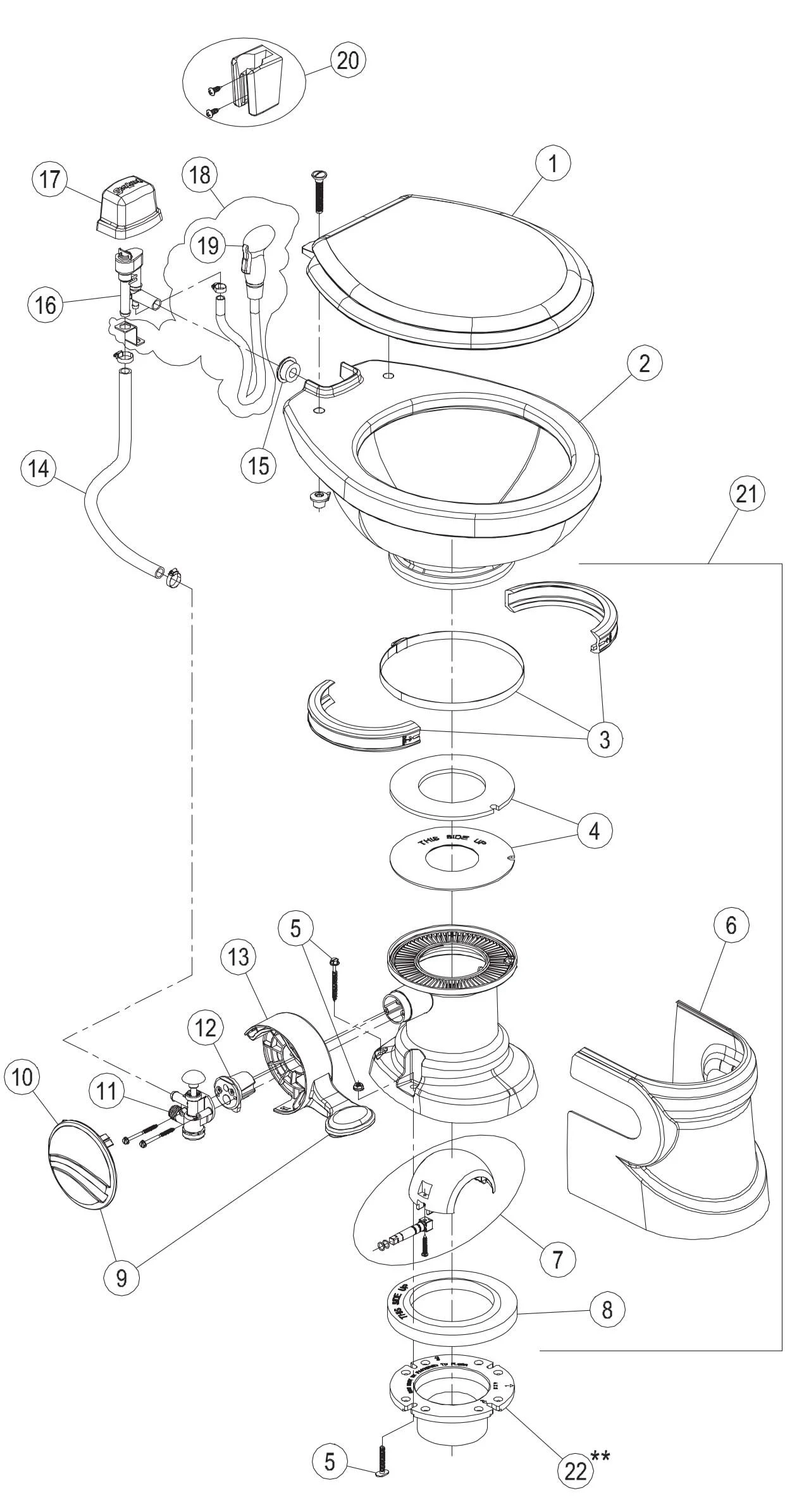

Dometic/Sealand Traveler Lite Model 210 RV Toilet Parts Diagram
Looking for replacement parts for your Dometic/Sealand Traveler Lite Model 210 RV toilet? Refer to the list below to find the part number you need.
As a Dometic Master Distributor, Environmental Marine carries a full line of replacement parts for Dometic/Sealand marine toilets and RV toilets. If you can’t find the part you’re looking for in our online store, contact our team and we’ll track it down for you!
| ITEM | PART NO. | DESCRIPTION |
| 1 | 385344088 | Seat/Cover - White |
| 1 | 385344089 | Seat/Cover - Bone |
| 2 | 385310790 | China Bowl Kit - White |
| 2 | 385310791 | China Bowl Kit - Bone |
| 3 | 385310048 | Bowl/Base Clamp Kit - Bone |
| 4 | 385311462 | Flush Ball Seal Replacement Kit |
| 5 | 385311117 | Mounting Hardware |
| 6 | 385311126 | Base Shroud - White |
| 6 | 385311127 | Base Shroud - Bone |
| 7 | 385310681 | Flush Ball, Shaft, Cartridge Kit (includes item 11) |
| 8 | 385311267 | Floor Flange Seal |
| 9 | 385311119 | Pedal & Cover - White |
| 9 | 385311120 | Pedal & Cover - Bone |
| 10 | 385311179 | Pedal Cover - White |
| 10 | 385311180 | Pedal Cover - Bone |
| 11 | 385314349 | Water Valve Kit |
| 12 | 385310683 | Spring Cartridge Kit |
| 13 | 385311121 | Pedal/Cartridge Kit – White (includes items 10 & 12) |
| 13 | 385311122 | Pedal/Cartridge Kit – Bone (includes items 10 & 12) |
| 14 | 385340177 | Bowl Water Supply Hose - White |
| 14 | 385345377 | Bowl Water Supply Hose - Bone |
| 15 | 385311164 | 1/2" Sealing Grommet |
| 16 | 385230335 | Vacuum Breaker Kit w/Hand Spray (includes item 15) |
| 16 | 385316906 | Vacuum Breaker Kit (includes item 15) |
| 17 | 385310795 | Vacuum Breaker Cover - White |
| 17 | 385310796 | Vacuum Breaker Cover - Bone |
| 18 | 385319054 | Hand Spray Kit w/Vac Breaker – White (includes items 15, 16, & 19)* |
| 19 | 385311124 | Hand Sprayer - White (includes item 20)* |
| 20 | 385230319 | Hand Spray Bracket w/Screw – White* |
| 21 | 385311128 | Base Kit – White (includes items 3-13) |
| 21 | 385311129 | Base Kit – Bone (includes items 3-13) |
| 22 | 385345889 | 3" MPT Floor Flange |
| 22 | 385345892 | 3" Socket Floor Flange |
| 22 | 385343765 | 3" Spigot Floor Flange |
| 22 | 385310961 | 45° Swivel Floor Flange (must be used with seal included in kit) |
* Items 18,19, & 20 are optional accessories; not provided with every model.
** Item 22 is sold separately; not included with the toilet.
